Outdoor Stages [Small]

A compact, portable PA system with power suitable for live band music performance on a small outdoor stage for an audience of up to 100 people depending on seating/venue size.

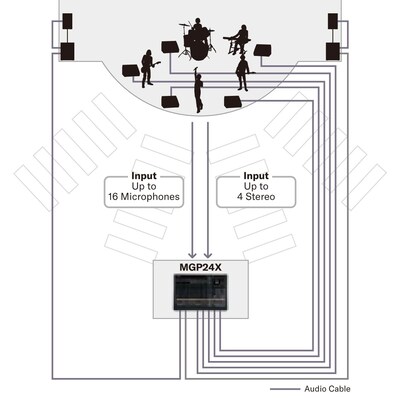

- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 6x powered speakers for monitoring.

- Studio-grade dual effect processors: high-end REV-X reverb and SPX digital multi-effect for versatile sound-shaping via simple, intuitive control. [Mixing console MGP24X]

- Speakers can reproduce consistent clarity at any output level with D-CONTOUR intelligent dynamic control feature. [Powered loudspeaker DXR12mkII]

- High-output, versatile subwoofers deliver your bottom end with superb clarity. [Powered subwoofer DXS15mkII]

- Floor monitor speakers feature an optimized 57° wedge angle. [Powered loudspeaker DHR12M]

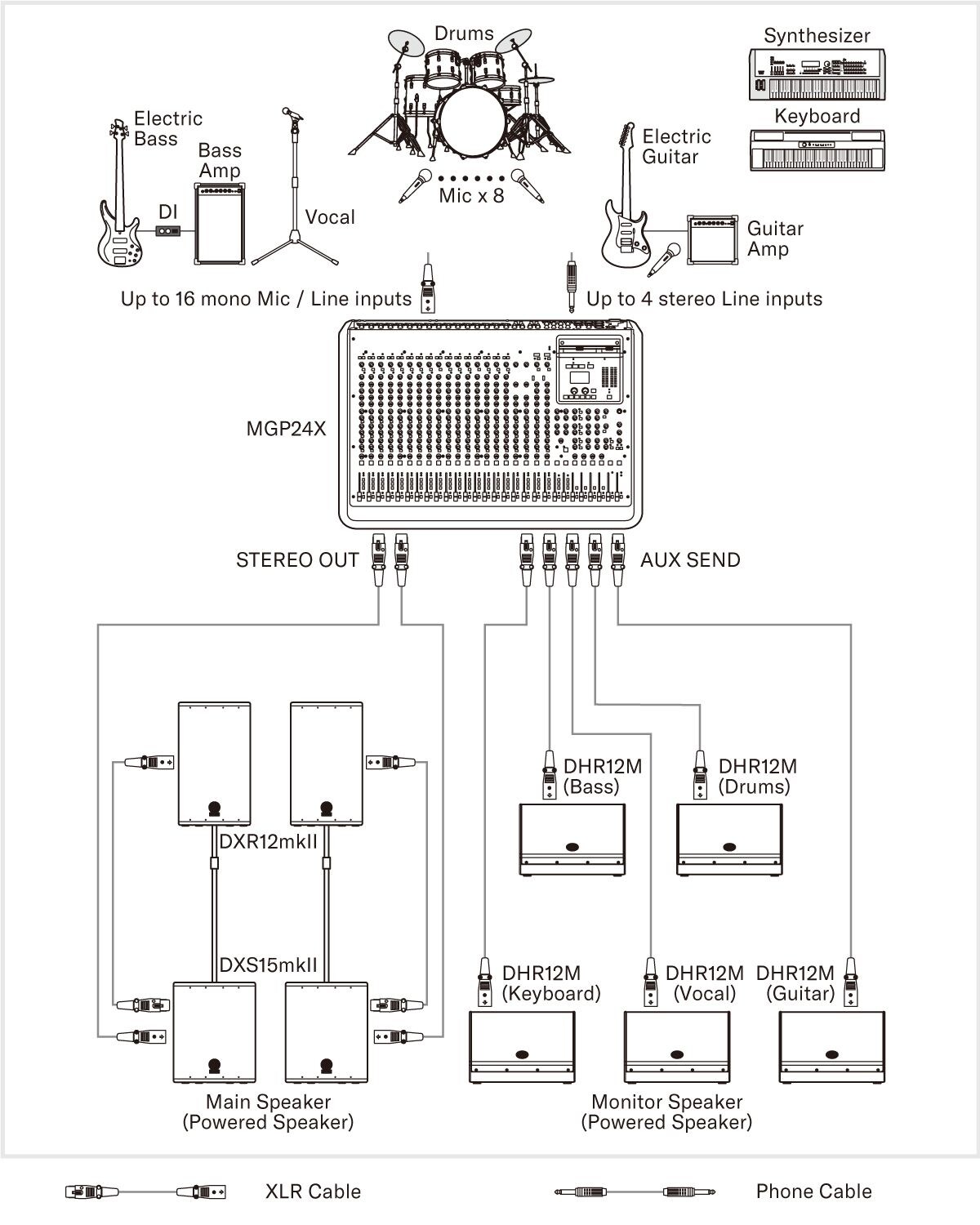

Category Model Name Qty
Mixing Console MGP24X 1
Power Amplifier - -
Main Speaker DXR12mkII (Powered Speaker) 2
Subwoofer DXS15mkII (Powered Speaker) 2
Monitor Speaker DHR12M (Powered Speaker) 5



Dual Digital Effects

Dual Digital Effects

MGP mixing console offers two separate studio-grade effects processors for ultimate enhancement of your sound, with simple intuitive control. Yamaha's high-end REV-X reverb offers three very musical and natural high-resolution reverb effects: Hall, Room and Plate—a first for any Yamaha analog mixer. For more sound-shaping possibilities, Yamaha's renowned SPX digital multi-effect processor provides a useful selection of 16 advanced digital effects with editable parameters. Both processors can be used simultaneously, giving you a vast array of tools to colour your sound.

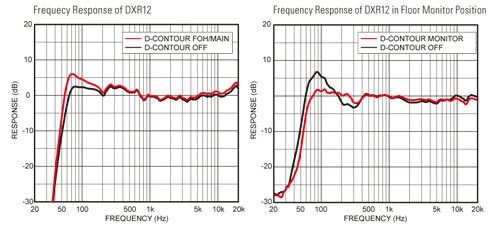

Intelligent Dynamic Control

Intelligent Dynamic Control

D-CONTOUR is an intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels. By constantly monitoring the output of multiple frequency bands and calculating the optimum EQ adjustments for each, even the maximum sound output maintains outstanding clarity and musicality. With the DXR Series, D-CONTOUR provides a more detailed tuning of your sound with two different settings: FOH/ MAIN mode or MONITOR mode.

Coaxial Compression Driver

Coaxial Compression Driver

DHR12M is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring.

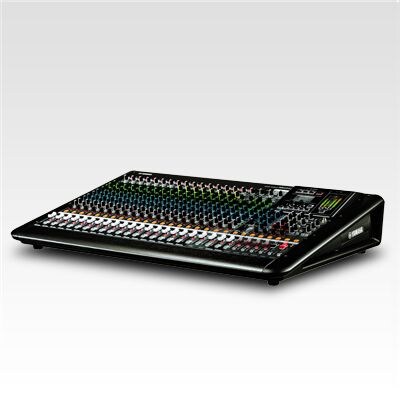

Hybrid mixer matching professional analog mixing engine with superior digital functions

- Max. 16 Mic / 24 Line Inputs (16 mono and 4 stereo)

- 4 GROUP Buses + ST Bus / 6 AUX Sends incl. 2 FX Sends

- 2 Matrix out/ 1 Mono out

- Dual digital effects: advanced "REV-X" reverb and 16 "SPX" effects

- "X-pressive EQ" based on Yamaha's VCM (Virtual Circuit Modeling) technology

- Stereo Hybrid Channel with DSP: Priority Ducker, Leveler and Stereo Image

- iPod/ iPhone USB connection for high quality digital playback

- "MGP Editor" App for detailed control of DSP settings with iPhone/iPod

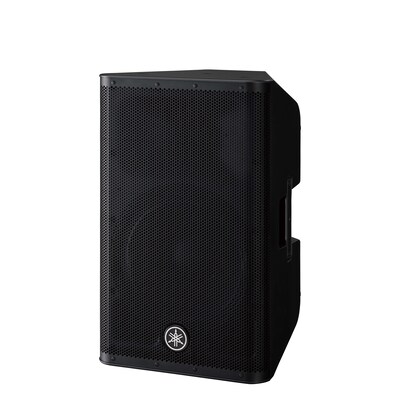

Yamaha DXR12mkII 12" 2-way Powered Loudspeaker

12” 2-way powered loudspeaker

- 1,100 W Class-D amplifiers

- Maximum 134 dB SPL (peak)

- D-CONTOUR multi band dynamic processor

- Intelligent onboard 3-channel mixer

- Compact and lightweight (18.6 kg / 41.0 lbs) with durable ABS enclosure

- Floor monitor angle

- Dual-Angle 35 mm pole mount socket

- Integrated M10 rigging points for suspended applications

- Optional U-bracket (UB-DXR12) and speaker cover (SPCVR-1201)

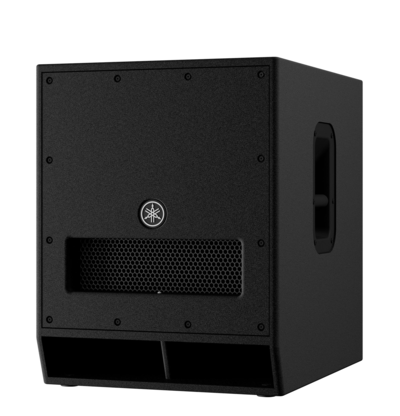

15” powered subwoofer, band-pass type

- 1,020 W Class-D amplifiers

- Maximum 135 dB SPL (peak)

- Frequency range 40 Hz - 150 Hz

- Compact and lightweight (36.0 kg / 79.4 lbs)

- Durable plywood enclosure with polyurea Coating

- 35 mm and M20 dual pole socket

- Optional speaker cover (SPCVR-DXS152)

- Optional wheel kit (SPW-1)


Yamaha Powered Loudspeaker DHR12M

12” 2-way powered loudspeaker

- 1000 W Class-D amplifiers

- Coaxial compression driver

- Maximum 129 dB SPL (peak)

- D-CONTOUR multi band dynamic processor

- Easy-to-use onboard 2-channel mixer

- Compact and lightweight (16.5 kg / 36.4 lbs)

- Low profile and durable plywood enclosure with polyurea coating

- 35 mm pole mount socket
