CS-800 Video Sound Bar pentru Huddle Rooms

SoundCap Eye™

The Latest in Participant Positioning Technology

Using the positioning data provided from BOTH the voice and camera pickup, Yamaha’s new SoundCap Eye™ technology pinpoints participant locations to deliver a seamless and immersive tracking experience unlike any other.

4K camera tracks participation physical locations while the Hexa-Microphone tracks audio source locations to deliver an accurate facial position for a dual, harmonized pickup. The technology can better determine participation location and block out unwanted background noise in potentially noisy environments like open workspaces.

Yamaha Video Collaboration Systems CS-800 and CS-500: SoundCap Eye™ Technology

Hexa-Microphone

Microphone is arranged in a hexagonal array that creates a 3-dimensional microphone beam that more accurately captures words spoken during conversations to reproduce a clearer and more precise sound compared to normal video sound bars.

SoundCap Eye™ is created by unifying three Yamaha’s unique technologies: Face Focus Beamforming, Self-Silence and Self-Volume Balancer.

Face Focus Beamforming

Feature image

Problem: Open workspaces can be noisy with sounds from colleague chatter, office equipment and nearby meetings. When having remote conference sessions, your conversation can be disrupted by these noises and far-end participants will have difficulty hearing you clearly.

Solution: The 4K camera built into the CS series not only delivers clear images, but also analyzes the captured images with AI to constantly track the faces of the meeting participants. Face Focus Beamforming realized by this AI camera and the newly developed Hexa-Microphone, suppresses noise coming from directions other than the person captured in the camera, and clearly picks up the voices of the meeting participants.

*Face Focus Beamforming is a function enables the remote communication at open workspaces. It is not recommended to use at closed spaces like conference rooms.

*In the open spaces, please keep more than 2 meter from the talker in another meeting.

Yamaha Video Collaboration Systems CS-800 and CS-500: Face Focus Beamforming

Self-Silence

Feature image

Problem: Even within the virtual walls of a conversation in an open workspace, there can be various surrounding noises that can be picked up. Whether it be the ringing of a phone, computer typing or shuffling of papers, sudden noises can be distracting especially to far-end participants.

Solution: The CS-800 & CS-500 include a self-silence function that automatically mutes the microphone when the conference participant is not speaking. By using Yamaha's Human Voice Activity Detection (HVAD) technology, the CS-800 & CS-500 can detect human voice from other sounds in an instant. Participants can rely on a smooth conversation without unnecessary sound whether they are speaking or not.

Self-Volume Balancer

Feature image

Problem: When using the video sound bars in open workspaces, speaker output can sometimes be too quiet or too loud when ambient background noise changes, causing missed information or an inconvenience to the surrounding workers. In some cases, there is also a risk of private information being heard.

Solution: With the self-volume balancer function, the CS-800 & CS-500 automatically adjust the volume according to the ambient noise to keep an appropriate speaker volume level (speaker of the CS-800 or monitor speaker) at all times. Participants can conduct remote conferences in open spaces without failing to hear conversation, disturbing their surroundings and keeping meeting contents private.

*CS-500 automatically adjust the speaker volume of the display connected via HDMI.

Smart Framing

The Smart Framing function recognizes people in the room who are speaking and automatically frames the video signal for remote participants.

Smart Framing supports 3 modes:

- Group: Frame all participant

- Speaker: Frame main speaker

- Individual: Frame specified person user selects

*People detection for Smart Framing max distance: 4.5 m

Feature image

Yamaha Video Collaboration Systems CS-800 and CS-500: Smart Framing Feature

Easy Launch

Automatic display launch with easy-to-follow instructions allow for a quick jump into collaboration sessions. Video / audio / screen sharing starts with one action and is easy and simple to connect with a single USB cable.

1. System Auto wake-up

  • Feature image

CS-800 recognizes users entering the room and can automatically wake up the display via HDMI-CEC.*

*Use TV/display that supports HDMI-CEC for auto wake-up function to turn on or turn off (standby) the display automatically.

2. On Screen User Guide

  • Feature image

CS-800 display a guide on the room display explaining how to use the room technology and start a meeting.

3. One USB Connection

  • Feature image

All functionalities: audio, camera and display (DisplayLink) will be connected to user’s laptop with just ONE USB connection.*

*The DisplayLink driver installation may be required in advance, depending on the PC.

Dual Remote Interface

Feature image

This dual design allows for both a singular microphone muting option as well as an advanced interface inclusive of:

・ Volume up/down

・ Manual Camera framing

・ Manual Camera Zoom in/out

・ Smart Frame Mode Selection

・ On/off button

・ Mic mute

Yamaha Video Collaboration Systems CS-800 and CS-500: Remote Control

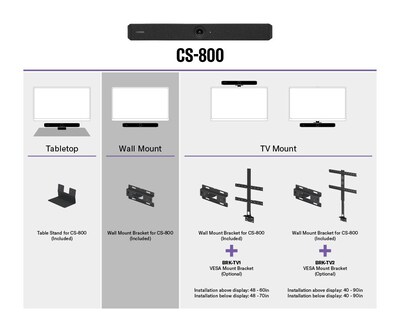

Multiple Installation Options

With a variety of mounting options available, the CS-800 makes any space ready for remote collaboration.

[Tabletop] Placed on tabletop: Table stand

[Wall Mount] Mounted on wall: Wall mount bracket

[TV Mount] Mounted above/below display: Wall mount bracket and BRK-TV1 (sold separately)

・ Supported display size:

48-60 inches (CS-800 above Display)

48-70 inches (CS-800 below Display)

When using the BRK-TV1

Please confirm the TV/Display you’re using meets the two conditions about VESA standards shown as follows.

Note: CS-500 requires both the BRK-TV1 & BRK-WL1 for TV/Display mount (Rigid).

  • Feature image
  • Feature image

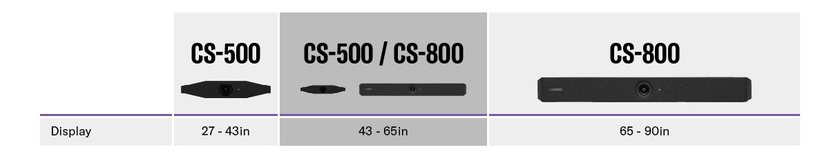

CS Series Display Size General Guideline

Feature image

*With its embedded leg, the CS-500 can be installed above displays that have a thickness of up to 50mm.

Usage Image

Feature image

*Face Focus Beamforming is a function enables the remote communication at open workspaces. It is not recommended to use at closed spaces like conference rooms.

*In the open spaces, please keep more than 2 meter from the talker in another meeting.

*People detection for Smart Framing max distance: 4.5m

Multi-platform compatibility

Seamless connectivity with all popular remote-conferencing software and supports Windows, macOS, Chrome OS, iOS, and Android.

  • Zoom Certified
  • Certified Microsoft Teams
