Network Cards

16-Channel Pro16 A-Net Network Output Card

• 1x A‑Net output, 1x EtherCon® RJ45 connector
• 44.1/48kHz SR, 24-bit uncompressed digital data
• Channel Link DIP switches for stereo operation
• Unlimited splits and lossless digital copies
• Cat-5e cable runs up to 500 feet (150 meters)

• Înregistrare Produs

16-Channel Pro64 A-Net Network I/O Card

• Up to 16 channels in and 16 channels out simultaneously
• Variable sample rates: 44.1/48kHz or 88.2/96kHz
• Robust clocking allows simple consoleto-console digital connections
• Remote control gain for up to 64 channels of 6416m preamps directly from the Yamaha console
• RS-232/RS-422 Virtual Data Cable I/O (compatible with Yamaha remote control protocol)
• Stereo Link per channel pair for Aviom Pro16® Personal Mixers

• Înregistrare Produs

16-Channel CobraNet™ Network I/O Card

• 24bit resolution, 16-in/16-out CobraNet™ interface (8-in/8-out at 96kHz)
• 2x RJ-45 connectors for primary and secondary network connections
• Integrates into any standard CobraNet™ network

• Înregistrare Produs

16-Channel EtherSound Network I/O Card

• 24bit resolution,16-in/16-out EtherSound (ES100) interface (8-in/8-out at 96kHz)
• Expandable to up to 64-in/64-out with MY16-EX expansion cards
• 2x etherCON CAT5 connectors for EtherSound I/O, 1x D-sub 9 pin connector for RS232-C, 2x RJ-45 connectors for MY16-EX connection
• Remote setup, patching and monitoring by AVS Monitor

16-Channel AuviTran EtherSound Network I/O Card

• Înregistrare Produs

16-Channel EtherSound/MADI I/O Expansion Card

• 24bit resolution, 16-in/16-out expansion card for MY16-ES64 and MY16-MD64
• 4x RJ-45 connectors

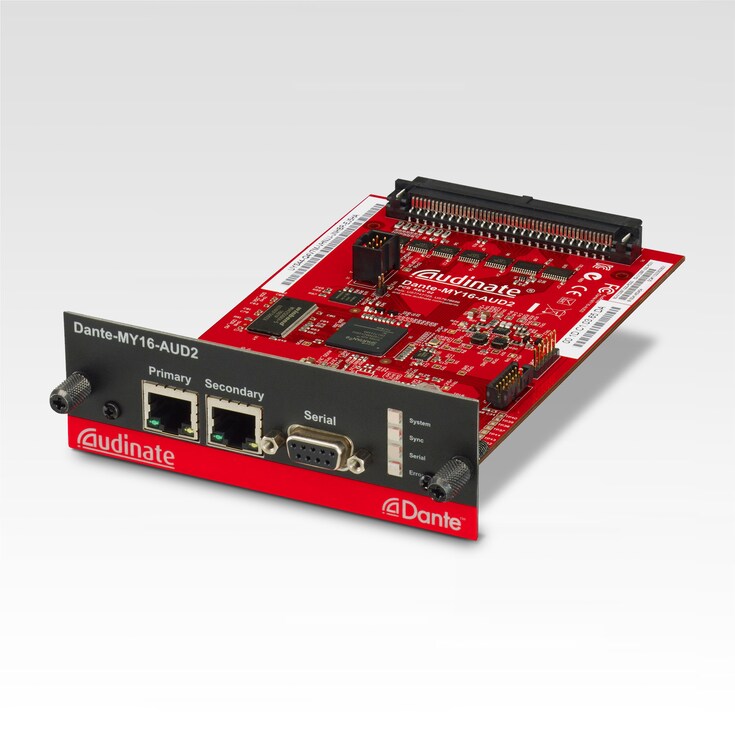

16-Channel Dante Network I/O Card

• Supports 44.1 and 88.2kHz sample rates, in addition to the previously-supported 48 and 96 kHz sample rates.
• Sample rate pull-up/down can be used to synchronise audio with video that has undergone frame rate conversion.
• Dante-MY16-AUD2 cards can be daisy chained together via the secondary Ethernet port.
• Dante-MY16-AUD2 can be PIN-locked and unlocked using Dante Controller.
• 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pin connector for RS232-C.
• Latency can be selected from five preset values: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms.
• More than 16 audio channels can be transferred when used with multiple Dante-MY16-AUD2 cards.
• Automatic discovery and setup for network devices. Devices names can be specified as required.
• Allows direct PC or Mac audio input and output without the need for an audio interface.

• Înregistrare Produs

16-Channel Optocore Network I/O Card

• 16In/16Out Audio Channels through console slot (miniYGDAI)
• Word clock from/to YGDAI slot, from/to Network and word clock transport to any device in the network
• 10/100 MBit Ethernet Virtual Switch to any Optocore device featuring Ethernet
• 2 RS422 ports for direct transport of Yamaha HA Remote protocol via Optocore
• 1 "Sub" port to connect to YS2 card for enlargement of audio channels up to 64In/64Out (32In/32Out @ 96kHz)
• 2 pluggable optical LC Transceivers, single- or multimode is user changable
• 1 RS232/1USB port for Optocore Control Software
• Upgradeable internal logic

• Înregistrare Produs

16-Channel Optocore I/O Expansion Card for YG2

• 16In/16Out Audio Channels through console slot (miniYGDAI)
• 1 "Main" port to connect to YG2 card or YS2 card in cascade
• 1 "Sub" port to connect to YS2 card in cascade for enlargement of audio channels up to 64In/64Out (32In/32Out @ 96kHz)
• 1 RS232 port to upgrade internal logic

• Înregistrare Produs

16-Channel RockNet300 Network I/O Card

• Înregistrare Produs

16-Channel RockNet100 Network I/O Card

• Înregistrare Produs

The Pivitec e16i/o-MY 16 is a Mini-YGDAI 16-channel bidirectional network interface card for Yamaha digital consoles.

• Channel Count: 16 channels bidirectional
• Sampling Frequency: 48kHz
• Resolution: 24 bit
• Connector: Neutrik Ethercon / RJ45 Network connector
• Network: 10/100 Network Interface

• Înregistrare Produs

Waves SoundGrid Interface Card

• 24-bit sample resolution
• Supports both native/generic and emulation modes of the YGDAI interface
• Record to two computers simultaneously
• Extremely low-latency networking platform for processing, playback and recording
• Connects to SoundGrid systems and SoundGrid-compatible devices
• Supports 44.1, 48, 88.2 & 96 kHz sample rates
• 16 I/O channels of audio at 44.1/48 kHz; 8 I/O channels of audio at 88.2/96 kHz
• Clock Sync over Ethernet (SoE) for digital splits and audio networking
• Works with all consoles installed with WSG-Y16 V1 card
• Redundancy and recovery options
• Compatible with standard computers and switches
• Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
• MIDI control from consoles
• Add up to four cards for 64/32-channel processing and recording

• Înregistrare Produs
